Slurry tanker Type MAX 10000-1/S
EU road certification up to 30 km/h
Technical and operating data
- length 7300 mm
- width 2800 mm
- height 3300 mm
- tires: 2 x 28L/26 (without fenders, or tires of such width and profile)
- number of axles: 1 x 110 mm
- track of wheels 2100 mm
- emphasis on the hook 22 kN – 2.2 ton
- unladen weight 3600 kg
- total mass 13600 kg
- width a line of pouring – PERROT JOSKIN 10m
- tractor with power of 80 KM
- time of filling the tank by the compressor: – MEC 9000 – time of emptying the tank from 5 min
MAX10000-1/S Slurry tanker with capacity of 10000 litres is totally equipped, new machinery ready to work.
SKU: ST10000AGROMAX
Categories: Agricultural machinery, All products, Slurry tankers
Tag: slurry tanker
Description
Specifications and standard equipment:
- The construction of the tanker – galvanized frame.
- The tank is made of sheet with 6mm thickness, it has additional reinforcing rings.
- Hot-dip galvanized tank inside and outside.
- Inside the tank breakwater with reinforcing frames.
- Compressor MEC 9000 M.
- Ball valve shutting off slurry inflow to the compressor.
- Manovacuometer.
- Lower catch at the height of 45 cm, or top catch.
- Interchangeable hook ear (40 mm or 50 mm to be fixed).

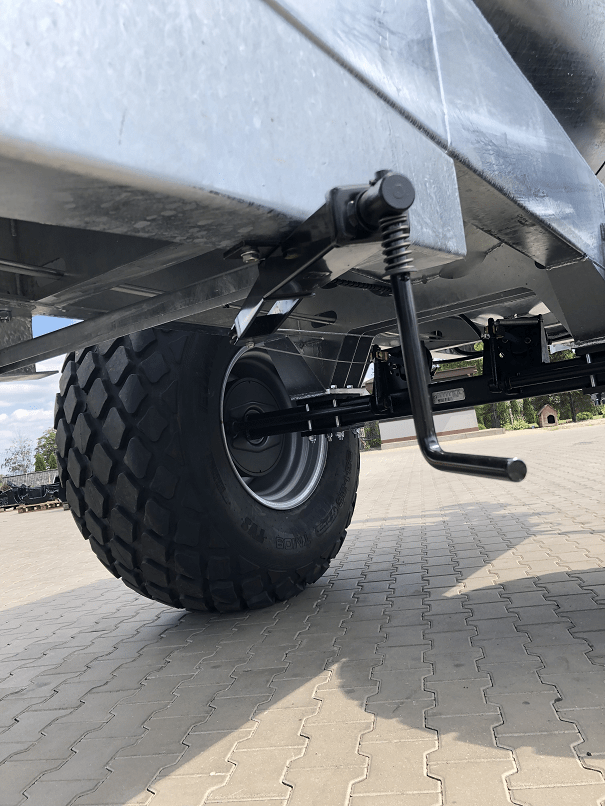

- Mechanically controlled parking, lateral support, carrying capacity to 4 tons.
- Tubular water gauge fi 90.
- Top opening fi 200 mm.
- The lighting system required by traffic regulations.
- Basic brake – pneumatic (1 or 2 circuit to be determined).
- Additional brake – manual.
- Hose 6″(fi 150) with a sucking basket – sucking hose length 6 m.
- Opened rear bottom dimension fi 1600 mm with two camlocks.
- The main drain gate valve diameter 6″, hydraulically controlled.
- Second drain gate valve fi 150 mm with camlock and quick coupler 6” Perrot.
- Bottling device – PERROT JOSKIN 6”.
- Side camlock 6” on the left side with manual shutter 6”, with quick coupler 6”.
- Side camlock on the right with knockout.
- Vacuum and overpressure safety valve.
- Certificate of compliance CE.
- Metal fenders.
- Warning triangle, cock indicator.
- Oil separator, silencer.
- Side ladder.
- Road certificate + EUR 1150
Buyers from Poland must add 23% VAT tax to the specified price.
Additional information
| Slurry tanker | single axle |
|---|
